Brass ball valves are versatile, durable, and widely used in various plumbing and industrial applications. There are several types of brass ball valves, each designed for specific functions and environments. Here’s an in-depth guide to help you understand the different types of brass ball valves available:

Based on Port Configuration

1. Two-Way Ball Valves:

- Design: Two ports (inlet and outlet).

- Function: Directs flow from one port to another.

- Applications: General on/off control in residential and commercial plumbing systems.

2. Three-Way Ball Valves:

- Design: Three ports in a T or L configuration.

- Function: Redirects flow between three different lines.

- Applications: Mixing or diverting applications in HVAC systems and process control.

3. Four-Way Ball Valves:

- Design: Four ports for complex flow arrangements.

- Function: Allows for more intricate flow paths and combinations.

- Applications: Specialized process control where multiple flow paths are needed.

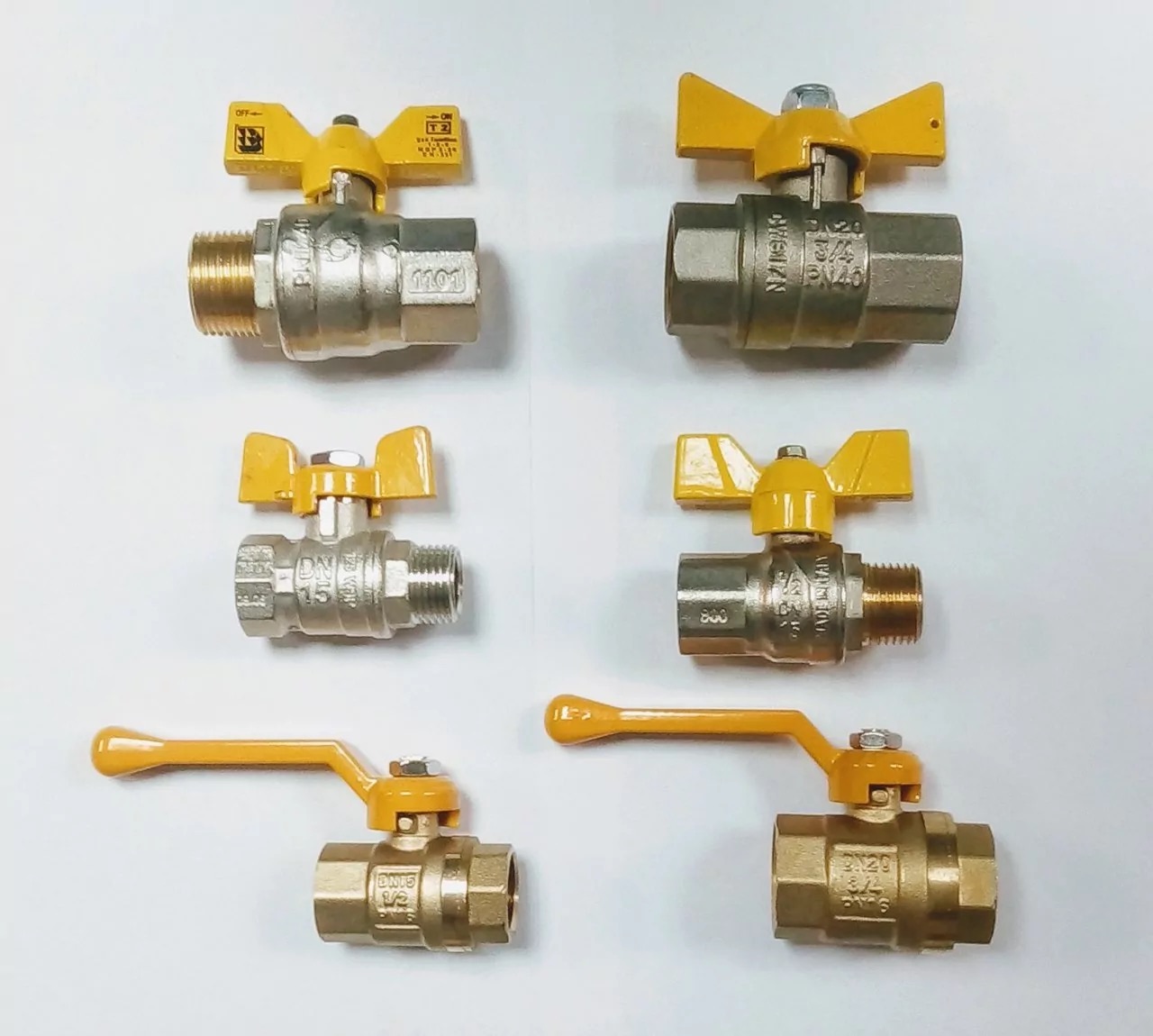

brass gas valve different types for gas system

Based on Connection Type

1. Threaded Ball Valves:

- Design: External (male) or internal (female) threads.

- Installation: Screwed onto corresponding threaded pipes.

- Advantages: Easy to install and remove without specialized tools.

- Applications: Household plumbing, industrial settings requiring easy maintenance.

2. Soldered Ball Valves:

- Design: Ends designed for soldering to copper pipes.

- Installation: Soldered using a torch and solder material.

- Advantages: Permanent, leak-proof connections suitable for high-temperature and high-pressure applications.

- Applications: HVAC systems, hot water supply, commercial plumbing.

3. Compression Ball Valves:

- Design: Compression fittings for connecting to pipes.

- Installation: Tightened using compression nuts.

- Advantages: No threading or soldering required, easily removable.

- Applications: Water supply lines, DIY plumbing projects.

4. Flanged Ball Valves:

- Design: Flanges for bolting to pipe flanges.

- Installation: Bolted together using gaskets for sealing.

- Advantages: Suitable for high-pressure and large-diameter systems, easy to service.

- Applications: Large-scale plumbing projects, industrial systems.

5. Push-Fit Ball Valves:

- Design: Push-fit connections for quick installation.

- Installation: Simply push onto the pipe until it locks in place.

- Advantages: Fast and easy installation without tools.

- Applications: Temporary installations, emergency repairs.

brass push fit valve

Based on Body Construction

1. One-Piece Ball Valves:

- Design: Single-piece body.

- Advantages: Fewer leak points, compact structure.

- Disadvantages: Cannot be disassembled for maintenance.

- Applications: Low-pressure applications where maintenance is minimal.

2. Two-Piece Ball Valves:

- Design: Consist of two pieces that form the body.

- Advantages: Easier to maintain and repair than one-piece valves.

- Disadvantages: More potential leak points than one-piece valves.

- Applications: Medium-pressure systems, general use.

3. Three-Piece Ball Valves:

- Design: Three segments that can be disassembled.

- Advantages: Allows for easy cleaning and repair without removing the entire valve.

- Disadvantages: More components can mean more potential leak points.

- Applications: High-precision applications, industrial processes needing frequent maintenance.

Based on Functionality

1. Full Port (Full Bore) Ball Valves:

- Design: Ball opening is the same size as the pipe.

- Advantages: Minimal flow restriction, optimal for high-flow applications.

- Applications: Water treatment, critical fluid transfer systems.

2. Reduced Port (Standard Bore) Ball Valves:

- Design: Ball opening is smaller than the pipe size.

- Advantages: Cost-effective, smaller and lighter.

- Applications: General plumbing where minor flow restriction is acceptable.

3. V-Port Ball Valves:

- Design: Ball with a V-shaped notch.

- Advantages: Provides precise flow control and throttling capabilities.

- Applications: Process control, applications needing accurate flow regulation.

4. Multi-Turn Ball Valves:

- Design: Operated by turning the handle multiple times.

- Advantages: Gradual control of flow, reduces water hammer effect.

- Applications: Flow-sensitive systems, gradual flow adjustments.

Based on Special Features

1. Fire-Safe Ball Valves:

- Design: Equipped with features to prevent leakage during a fire.

- Applications: Oil and gas industries, critical safety applications.

2. Anti-Static Ball Valves:

- Design: Includes anti-static devices to prevent static electricity build-up.

- Applications: Handling flammable fluids, chemical processing.

3. Cryogenic Ball Valves:

- Design: Designed for low-temperature applications.

- Applications: Cryogenic fluids, liquefied natural gas (LNG) systems.

4. High-Pressure Ball Valves:

- Design: Constructed to withstand high pressures.

- Applications: Hydraulic systems, industrial gas pipelines.

5. Automated Ball Valves:

- Design: Equipped with an actuator for remote operation.

- Types of Actuators: Electric, pneumatic, hydraulic.

- Applications: Automated systems, process control environments.

Understanding the various types of brass ball valves is essential for selecting the right valve for your specific needs. From the basic two-way and three-way configurations to specialized valves like cryogenic and fire-safe types, each has its unique benefits and ideal applications. Whether you need a simple on/off control valve or a complex flow-routing solution, there's a brass ball valve to meet your requirements for any plumbing or industrial system.

brass pex ball valve in different items

How to Choose the Right Type of Brass Ball Valve for Your Project?

Selecting the right brass ball valve for your project involves considering several factors to ensure compatibility, efficiency, and longevity. Here’s a step-by-step guide to help you make an informed choice:

1. Understand Your Application

Identify the Purpose:

- On/Off Control: For simple open/close functions, a two-way ball valve is typically sufficient.

- Flow Direction Control: If you need to divert or mix flows, consider a three-way or four-way ball valve.

- Throttling: For precise flow control, a V-port ball valve might be the best choice.

2. Determine the System Specifications

Pressure and Temperature Requirements:

- High Pressure: Choose a high-pressure ball valve if the system operates under high pressure conditions.

- Extreme Temperatures: Use cryogenic ball valves for low temperatures and high-temperature rated valves for hot fluids.

Flow Rate:

- Minimum Flow Restriction: A full port ball valve offers minimal flow restriction, making it ideal for systems requiring high flow rates.

- Acceptable Flow Restriction: A standard port valve can be used where slight flow restriction is acceptable, and cost-saving is a priority.

3. Consider the Connection Type

Threaded Connections:

- Simplicity and Reusability: Ideal for low to medium pressure systems, easy to install and remove.

- Application: Residential plumbing, low-pressure industrial applications.

Soldered Connections:

- Strength and Leak-Proof: Provides permanent and strong joints suitable for high-pressure and high-temperature applications.

- Application: HVAC systems, commercial hot water supply.

Compression Fittings:

- Tool-Free Installation: Easy to install and remove without specialized tools.

- Application: DIY projects, water supply lines.

Flanged Connections:

- High Strength and Maintenance: Suitable for high-pressure systems, easier maintenance and replacement.

- Application: Industrial systems, large-diameter pipes.

Push-Fit Connections:

- Quick Installation: No special tools needed, ideal for temporary setups.

- Application: Emergency repairs, quick installations.

4. Evaluate the Body Construction

One-Piece:

- Fewer Leak Points: Simplified construction with fewer potential leak points but harder to maintain.

- Application: Low-maintenance, low-pressure applications.

Two-Piece:

- Ease of Repair: Easier to disassemble for maintenance compared to one-piece valves.

- Application: Medium-pressure systems with occasional maintenance needs.

Three-Piece:

- Frequent Maintenance: Allows for easy cleaning and repair without removing the valve from the pipeline.

- Application: High-precision applications, industrial processes with regular maintenance.

5. Check for Special Features

Fire-Safe Valves:

- Enhanced Safety: Prevents leakage during a fire.

- Application: Oil and gas, critical industrial processes.

Anti-Static Valves:

- Static Electricity Prevention: Prevents build-up of static electricity, essential for flammable fluids.

- Application: Chemical processing, handling flammable fluids.

Cryogenic Valves:

- Low-Temperature Performance: Designed for extremely low temperatures.

- Application: LNG systems, cryogenic fluids handling.

Automated Valves:

- Remote Operation: Equipped with actuators for automated control.

- Application: Automated systems, industrial process control.

6. Assess the Material and Quality

Material Compatibility:

- Corrosion Resistance: Ensure the brass is suitable for the type of fluid and environment it will be used in.

- Certification and Standards: Look for valves that meet industry standards and certifications to ensure quality.

Manufacturer Reputation:

- Reliability: Choose valves from reputable manufacturers known for their quality and reliability. Vpexco as a professional manufacturer for brass ball valve more than 20 years in China, we can be your reliable choice. Contact us any time you need.

7. Factor in the Budget

Cost vs. Performance:

- Balance: Strive to find the right balance between cost and the required performance features.

- Long-Term Value: Consider long-term costs associated with maintenance, replacement, and potential downtime.

Summary

Choosing the right brass ball valve for your project involves a thorough understanding of your system’s requirements, including pressure, temperature, flow rate, connection type, and maintenance needs. Evaluate the body construction and special features relevant to your application to ensure optimal performance and compatibility. Balancing cost and quality is crucial to achieving a reliable and efficient system. By considering these factors, you can confidently select a brass ball valve that meets your project's specific needs and ensures long-term reliability.

Frequently Asked Questions (FAQs)

A. What sizes do brass ball valves come in? U

- Usually 1/4”, 3/8” 1/2”, 3/4” 1”, 11/4”, 11/2”, 2” and up to 4” brass ball valve

B. Can brass ball valves be used for gas?

-Yes, brass ball valve can be used for water, oil and gas.

C. How do I know if my brass ball valve needs to be replaced?

- 1. Leaking at the Handle or Pipe

- 2. Obvious Corrosion

- 3. Reduced Flow Rates

- 4. Valve Gets Stuck or Won't Close Completely

- 5. Ball Valve Jamming

- 6. A Closed Ball Valve That Leaks
