When I first tried to understand underfloor heating systems, I was confused by the many components. One word kept showing up—manifold.
An underfloor heating manifold is the control center of the whole underfloor heating system. It distributes warm water evenly to different zones in a building.
Without understanding what a manifold does, it's easy to make mistakes in system design. Let me break down the concept for you and share everything I’ve learned in the past 20 years working with heating systems.
What is a manifold in underfloor heating?
I used to think pipes could be connected directly from the boiler into the floor. But when I saw my first manifold in a client’s project, everything clicked.

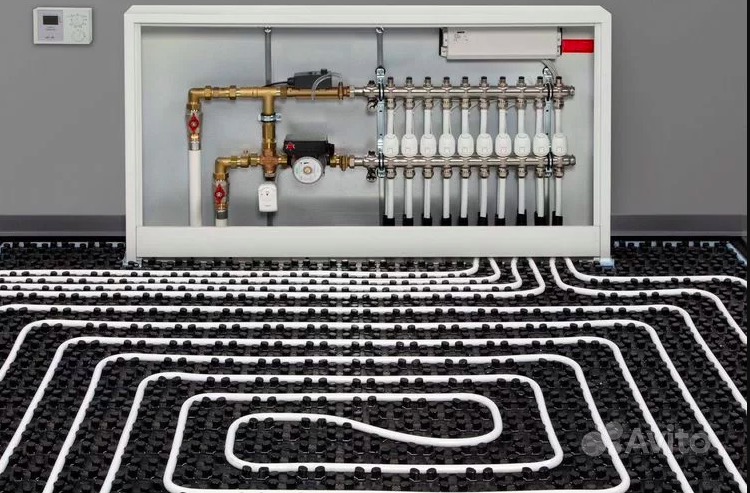

A manifold in underfloor heating is a multi-port unit that distributes hot water to different zones of a floor heating system. Each port leads to a circuit of PEX or multilayer pipe buried under the floor.
Let me explain further.
Why a manifold is essential
Without a manifold, you’d have no way to balance the flow to each room or area. Some rooms would overheat. Others wouldn’t heat at all. A manifold acts like a traffic controller, ensuring each pipe circuit gets the right amount of water.
Components of a typical manifold system
| Part | Function |
|---|---|
| Flow meter | Measures how much water flows to each loop |
| Return valve | Lets you control flow rate manually |
| Thermostatic actuator | Opens/closes automatically via room thermostats |
| Air vent | Releases trapped air from the system |
| Drain valve | Allows system flushing and maintenance |
These components make your system efficient, quiet, and balanced. That’s why I always recommend using a full manifold set rather than separate fittings.
What is the best underfloor heating manifold?
Clients always ask me: “What’s the best manifold?” But the answer depends on your system layout, budget, and performance needs.
The best underfloor heating manifold is one made from high-quality brass or stainless steel, with integrated flow meters, return valves, and reliable actuators.
Material matters
I’ve worked with both plastic and brass manifolds. Plastic ones are cheaper, but they tend to warp over time under heat and pressure. Brass manifolds last much longer, resist corrosion, and are easier to service.
Features I look for in a top manifold
- Pre-assembled and pressure-tested
- Flow indicators with visible scales
- Adjustable valves for fine-tuning
- Air vents and drain taps included
- Compatible with thermostatic heads
Here’s a quick comparison:
| Feature | Budget Manifold | Premium Manifold |
|---|---|---|
| Material | Plastic | Brass or Stainless Steel |
| Flow Control | Manual only | Flow meter + actuator |
| Life Span | 3–5 years | 10+ years |
| Best For | Small rooms | Whole-house system |
When in doubt, I recommend going with a high-quality brass manifold. It might cost a little more, but it saves money in the long run.
Does an underfloor heating manifold need a pump?
When I started designing underfloor heating for small projects, I thought the boiler pump was enough. But then one client’s floor never warmed up properly. That’s when I learned this lesson.
Yes, most underfloor heating manifolds need a dedicated circulating pump1 to maintain the correct flow rate and pressure.
Why the built-in boiler pump isn’t enough
Boiler pumps are designed to push water through traditional radiators—not long loops of narrow piping. In underfloor heating, each loop can be over 100 meters long. The resistance is much higher. A separate pump ensures even heat across all zones.
What kind of pump do you need?
The good news is: many underfloor heating manifolds come with a pump module already installed. This includes:
- Circulating pump
- Mixing valve
- Safety thermostat
These components blend hot water from the boiler with cooler return water, keeping the floor temperature safe—usually between 35°C and 45°C.
Pumped vs. Non-pumped manifolds
| Type | When to Use |
|---|---|
| Pumped | For systems with direct connection to boiler |
| Non-pumped | When connected to pre-pumped low-temp circuits |
In general, if you're not sure—go with a manifold that includes a pump. It simplifies the installation.
What type of pipe is used for underfloor heating?
I’ve worked with dozens of pipe types, but only a few are truly reliable for underfloor heating. Over the years, PEX and multilayer pipes proved to be the most durable.
PEX and PEX-AL-PEX pipes are the most commonly used types for underfloor heating systems. They are flexible, resistant to scale, and easy to install.
PEX vs. PEX-AL-PEX
| Property | PEX | PEX-AL-PEX |
|---|---|---|
| Flexibility | Very high | Medium |
| Oxygen barrier | Optional | Built-in (aluminum layer) |
| Price | Lower | Slightly higher |
| Stability | May expand under heat | Very stable |
| Best For | Simple loops | Long loops, professional installs |
In my own projects, I use PEX-AL-PEX for clients who want durability and stable temperatures. The aluminum layer makes it more rigid, which helps keep installation neat.
Pipe sizing
Most underfloor heating systems use pipe with a 16mm outer diameter. Some smaller zones use 12mm. The right size depends on your heat output and floor construction.
Pro tip: Always pressure-test the pipe before pouring concrete or laying tiles. It’s easier to fix issues early than after everything is sealed.
An underfloor heating manifold is not just a connector—it’s the heart of your heating system, making sure every room stays warm, efficient, and safe.
-
