Brass Manifolds from 2-6 outlets
|

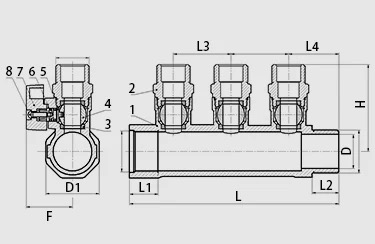

NO. |
Part Name |
Material |
|
1 |
Body |
Brass |
|
2 |
Bonnet |
Brass |
|
3 |
Seat |
PTFE |
|
4 |
Ball |
Brass |
|
5 |
Stem |
Brass |
|
6 |
O-ring |
NBR |
|
7 |
Handle |
AL |
|
8 |
Cross head screw |
Iron |
|
Spec |
L |
L1 |
L2 |
L3 |
D |
D1 |
H |
F |
|
3/4″x12″ |
129 |
17.5 |
16 |
35.5 |
21 |
33 |
54 |
31.8 |
|
1″x1/2″ |
131 |
18 |
17 |
36 |
26 |
38 |
57.7 |
31.5 |
