Understand the Brass Pex Fittings
What is Brass Pex Fittings?
Brass PEX fittings are components used to connect PEX (cross-linked polyethylene) tubing in plumbing and heating systems. These fittings are specifically designed to provide secure and reliable connections between PEX pipes.
About Brass material
Brass is a widely used material in the manufacturing of pipe fittings due to its excellent properties and versatility. Brass Pex Fittings are the fittings used to connect the Pex piping.
Composition: Brass is an alloy primarily composed of copper and zinc. The proportions of these metals can vary, resulting in different types of brass with varying properties. Commonly, brass contains about 60-70% copper and 30-40% zinc.
different types of brass raw material for brass pex fittings
How many types of Brass materials you know? Usually we use normal brass HBP58-3A, HPB59-1, CW614N, CW617N, DZR Brass CW602N, Lead-Free Brass C45600 or C37000. More details you can check the above table. And read the post HPB58-3A vs CW617N vs CW602N, what're the differences between these brass pex fittings raw material?
How Many types of Brass Pex Fittings?
We have Pex compression fittings, pex press fittings, pex crimp fittings, pex push in fittings, pex sliding fittings, etc. For more information you can visit How many types of brass fittings for pex pipe connection?

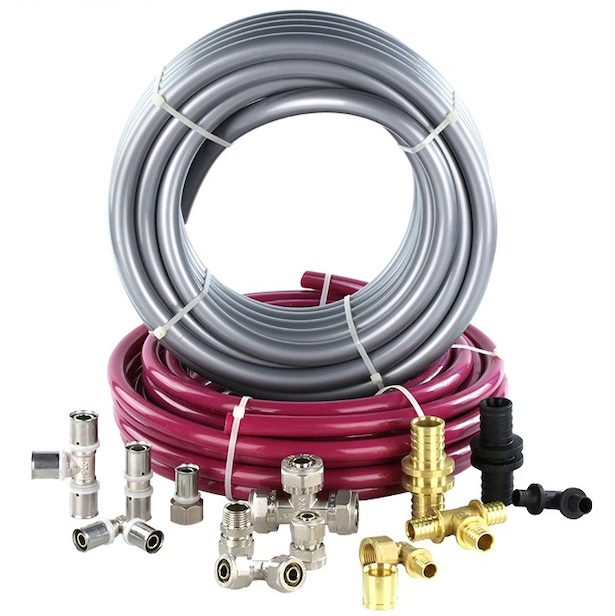

different types pex pipe fittings connection
Applications for Brass Pex Fittings
Residential Plumbing
*Water Distribution: Used in hot and cold water distribution systems.
*Heating Systems: Ideal for underfloor heating systems and radiant heat installations.
Commercial Systems
*Hot and Cold Water Supply: Suitable for various commercial applications, including multi-unit residential buildings.
*HVAC Systems: Employed in heating and cooling systems.
Industrial Use
*Process Piping: Used in specific industrial processes where PEX systems are appropriate.
*Compressed Air Systems: In some cases, used for low-pressure compressed air lines.
Safety Concerns with Brass PEX Fittings
When it comes to plumbing and ensuring safe drinking water, the materials used in your system play a critical role. Brass PEX fittings are popular due to their durability and efficiency. However, there are some safety concerns that need attention, particularly regarding lead content and dezincification.
A. Lead Content in Brass Fittings
1. Historical Use of Lead in Brass
Lead has traditionally been used in brass to improve its machinability and durability. Unfortunately, lead can leach into drinking water over time, posing severe health risks. This issue raised concerns, especially in older plumbing systems where lead content in brass was higher, potentially contaminating the water supply and making it unsafe for consumption.
2. Modern Lead-Free Brass Standards
In response to these concerns, modern plumbing regulations have significantly tightened the allowable lead content in brass fittings. Today, fittings are classified as "lead-free" if they contain no more than 0.25% lead, as stipulated by the Safe Drinking Water Act and NSF/ANSI 61 standards. This development ensures that contemporary brass PEX fittings are much safer for use in drinking water systems, drastically reducing the risk of lead contamination.
B. Dezincification
1. Explanation of Dezincification
Dezincification is a specific type of corrosion that occurs in brass when the zinc component leaches out, leaving behind a porous, weakened copper structure. This phenomenon primarily affects brass alloys containing more than 15% zinc and is instigated by exposure to certain water conditions, such as high chloride levels.
2. Impact on Water Quality and Fitting Integrity
The implications of dezincification are twofold. Firstly, it compromises the structural integrity of brass fittings, making them prone to leaks and failures. Secondly, the process can affect water quality by introducing zinc and copper ions into the water supply, potentially leading to metal contamination. It's vital to choose high-quality, dezincification-resistant (DZR) brass fittings to mitigate these risks and ensure reliable, long-lasting performance in your plumbing system.

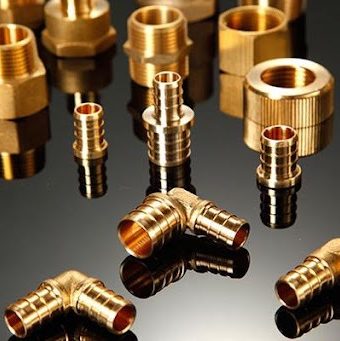

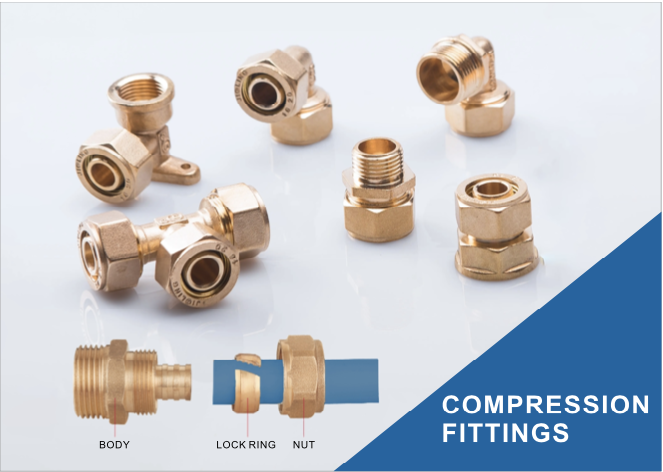

brass compression fittings for pex pipe
Are brass PEX fittings safe for drinking water?
Yes, brass PEX fittings are generally safe for drinking water, but it's important to ensure that the specific fittings you choose comply with relevant safety standards and regulations. Here are some key points to consider regarding the safety of brass PEX fittings for potable (drinking) water systems:
Lead-Free Requirements
1. Lead-Free Compliance: Modern brass PEX fittings that are intended for use in potable water systems must adhere to lead-free standards. In the United States, the Safe Drinking Water Act mandates that any fitting used in drinking water systems contain no more than 0.25% lead by weight on wetted surfaces. Look for fittings that are marked as "lead-free" or "NSF 61" certified to ensure compliance with these standards.
2. Certification Labels: Look for certifications or markings such as NSF/ANSI 372 (lead content certification) or NSF/ANSI 61 (health effects from drinking water) on the fitting packaging. These certifications indicate that the fittings have been tested and meet the safety standards required for potable water applications.
Material Quality
1. Brass Composition: Ensure that the brass alloy used in the fittings is of high quality and specifically formulated for plumbing applications. Manufacturers often provide detailed information about the alloy composition, which should comply with safety standards.
2. Manufacturing Standards: Reputable manufacturers adhere to stringent quality control processes to ensure their fittings are safe for drinking water. Choosing fittings from well-known and trusted brands can provide additional assurance of safety and quality.
Water Quality Considerations
Choosing the right plumbing materials is crucial, but understanding how water chemistry impacts these materials is equally important. Brass PEX fittings are known for their durability and efficiency, but certain water quality factors can significantly affect their performance and longevity. Here, we explore the impact of water chemistry on brass fittings and provide recommendations for water testing.
A. Impact of Water Chemistry on Brass Fittings
The chemistry of the water running through your plumbing system can greatly influence the condition and lifespan of brass fittings. Key factors to consider include the acidity of the water and its chlorine levels.
1. Acidic Water
Acidic water, measured by its pH level, can lead to substantial damage in brass fittings over time. Water with a pH level below 7 is considered acidic.
Corrosion: Acidic water accelerates the corrosion process in brass fittings, leading to the leaching of metals like copper and zinc. This can compromise the structural integrity of the fittings, resulting in leaks and potential water contamination.
Health Risks: The leached metals may enter the drinking water, posing health risks such as gastrointestinal issues and longer-term effects like kidney damage.
Signs of Acidic Water: Indicators of acidic water include blue or green stains in sinks and bathtubs, a metallic taste to the water, and frequent pinhole leaks in copper or brass pipes.
2. High Chlorine Levels
Chlorine is commonly added to municipal water supplies for disinfection purposes. However, high chlorine levels can have adverse effects on brass fittings.
Chloride-Induced Corrosion: Excessive chlorine can lead to chloride-induced corrosion, weakening the brass and leading to dezincification—a process where zinc leaches out of the brass, leaving behind a porous structure prone to failures.
Dezincification: This form of corrosion not only affects the physical strength of the fittings but can also contribute to water contamination, as dissolved metal particles enter the water supply.
Impact on Longevity: Prolonged exposure to high chlorine levels can significantly reduce the lifespan of brass fittings, necessitating more frequent replacements and maintenance.
B. Recommendations for Water Testing
Proactive water testing is essential to identify and mitigate the impact of adverse water chemistry on brass PEX fittings. Here are some actionable steps and recommendations for effective water testing:
Regular Testing: Conduct water quality tests at least once a year or whenever you notice changes in water taste, color, or smell. Regular testing helps detect issues early and allows for timely interventions.
Comprehensive Analysis: Ensure that your water tests include assessments of pH levels, chlorine content, and the presence of any other harmful chemicals or metals. Comprehensive testing will provide a clear picture of your water quality and potential risks.
Professional Testing Services: While home testing kits are available, consider using professional water testing services for more accurate and detailed results. Professionals can offer insights and recommendations based on their findings.
Addressing Acidic Water: If testing reveals that your water is acidic, consider installing a water neutralizer or acid filter to balance the pH levels. This will help protect your brass fittings and improve overall water quality.
Chlorine Mitigation: If high chlorine levels are detected, using activated carbon filters can help reduce chlorine and its corrosive effects on brass fittings. Additionally, explore alternative disinfection methods like UV treatment if you're managing a private water supply.
Understanding water quality considerations is key to maintaining the performance and safety of your brass PEX fittings. By regularly testing your water and addressing issues related to acidity and high chlorine levels, you can safeguard your plumbing system and ensure the longevity and safety of your fittings. Proactive measures and informed choices go a long way in preserving the integrity of your water supply and plumbing infrastructure.

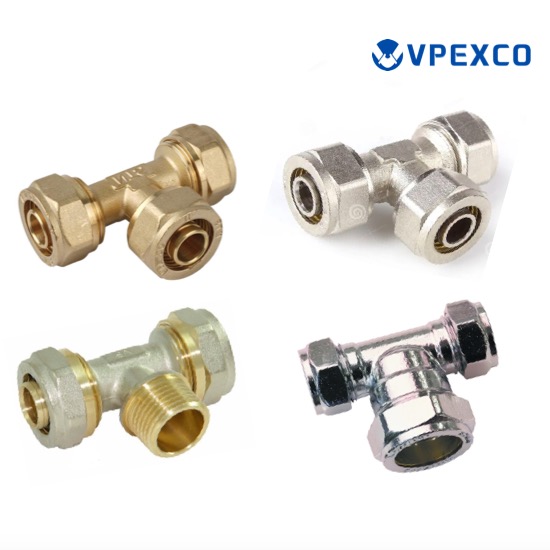

brass sliding pex fittings
Conclusion
Brass PEX fittings are safe for drinking water as long as they meet lead-free standards and are certified for potable water use. By choosing high-quality, certified fittings and following proper installation and maintenance practices, you can ensure a safe and reliable plumbing system for your drinking water needs. Always verify the certifications and consult with the manufacturer or a plumbing professional if you have any concerns about the safety of your fittings.
If you have more questions or any inquiry for our brass pex fittings or pex installation tools, welcome to contact us
